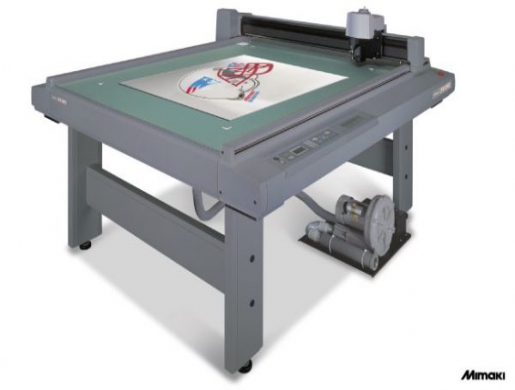

Mimaki CF2-1215

  • Share on social media

Enable your multi-type-small-lot production with the CF2.
The CF2 Series flat bed cutting plotter capable of cutting various kinds of media with high accuracy without dies. Out of a total of 30 kinds of line-up, you can choose the one best suited for your needs. By cutting the printed media, you may produce high value-added products on demand required. Begin multi-type small-lot production with unprecedented high quality.



CF2-0912** CF2-1215** CF2-1218**
Effective
plotting
area X
(Sensor model) 1,170mm(46.1″) 1,470mm(57.9″) 1,770mm(69.7″)
X
(No sensor model) 1,200mm(47.2″) 1,500mm(59.1″) 1,800mm(70.9″)
Y 900mm(35.4″) 1,200mm(47.2″)
Motorization X,Y,Z,θ 4 axes DC software servo
Maximum plotting speed 50cm(19.7″) / s
Maximum acceleration 0.5G
Mechanical resolution X:0.00234mm(0.00009″) Y:0.003125mm(0.0001″) θ:0.05625
Command resolution 0.025mm(0.001″) / 0.01mm(0.0004″)
(changeable from operation panel)
Static
accuracy *1 Repetition accuracy ±0.1mm(0.004″)
Distance accuracy ±0.1mm(0.004″) or ±0.1% whichever is greater
Origin repetition accuracy ±0.1mm(0.004″)
Maximum thickness of set work T / TD:25mm(1″) RT / RC:20mm(0.8″)
Work fixation Air suction by a blower
Receiver buffer size 1MB
Command MGL-IIc3(Support MGL-IIc) *2
Interface RS-232C
Dimension Width 1,760mm(69.3″)
or less 2060mm(81.1″)
or less 2360mm(92.9″)
or less
Depth 1,600mm(63.0″)
or less 1900mm(74.8″) or less
Height 1,100mm(43.3″) or less
Weight 140kg(308lbs) 165kg(364lbs) 180kg(397lbs)
Operation environment Temperaturet : 5-40ºC
Humidityt : 35-75%(Rh)No condensation
Power requirement Main Unitt : 50/60Hz AC100/120/220/240V(tap changing)
Blowert : Stated separately
Power consumption Main Unit : 300VA Blowert : Stated separately
★:Possible to cut with standard accessories
●:Possible to cut with the use of optional items

T TF RT TD RC
Corrugated fiberboard(E to B corrugation)* ★ ★
Corrugated fiberboard(AB corrugation)* ★
Coated board for packaging* ★ ★
Vinyl chloride for clear package* ★ ★
Plastic corrugated fiberboard ★ ★
Vinyl chloride sheet for signboard ★ ★ ★ ★ ★
Soft vinyl chloride(0.5 to 10mm) ● ●
Reflecting sheet ★ ★ ★ ★ ★
Sand-blast rubber ★ ★ ★ ★ ★
Industrial sheet rubber(3mm or less) ★ ★ ★ ★ ★
Industrial sheet rubber(0.5 to 10 mm) ● ●
Pattern Happort ★ ★ ★ ★ ★
Teflon(1.0 to 5.0mm) ★ ★ ★
Resin belt. (5.0mm or less) ★ ★
Various foam(20mm or less) ★
Note) As the property of the media may vary depending on the material manufacturers, the above data is just a guide. Make sure to perform your own testing.
Note) *shows material to which drawing of the ruled line is possible.







CF2-0912T Effective cutting area: 900 x 1,200 mm (35.4 x 47.2″)
CF2-0912TF Effective cutting area: 900 x 1,200 mm (35.4 x 47.2″)
CF2-0912RT Effective cutting area: 900 x 1,200 mm (35.4 x 47.2″)
CF2-0912TD Effective cutting area: 900 x 1,200 mm (35.4 x 47.2″)
CF2-0912RC Effective cutting area: 900 x 1,200 mm (35.4 x 47.2″)
CF2-1215T Effective cutting area: 1,200 x 1,500 mm (47.2 x 59.1″)
CF2-1215TF Effective cutting area: 1,200 x 1,500 mm (47.2 x 59.1″)
CF2-1215RT Effective cutting area: 1,200 x 1,500 mm (47.2 x 59.1″)
CF2-1215TD Effective cutting area: 1,200 x 1,500 mm (47.2 x 59.1″)
CF2-1215RC Effective cutting area: 1,200 x 1,500 mm (47.2 x 59.1″)
CF2-1218T Effective cutting area: 1,200 x 1,800 mm (47.2 x 70.9″)
CF2-1218TF Effective cutting area: 1,200 x 1,800 mm (47.2 x 70.9″)
CF2-1218RT Effective cutting area: 1,200 x 1,800 mm (47.2 x 70.9″)
CF2-1218TD Effective cutting area: 1,200 x 1,800 mm (47.2 x 70.9″)
CF2-1218RC Effective cutting area: 1,200 x 1,800 mm (47.2 x 70.9″)

Town / City / village:Nairobi - Kenya
Creation Date28/08/2021
Ad number:18670
CategoryAutres
Keywords:#Mimaki#Printing#Machine
